Description:

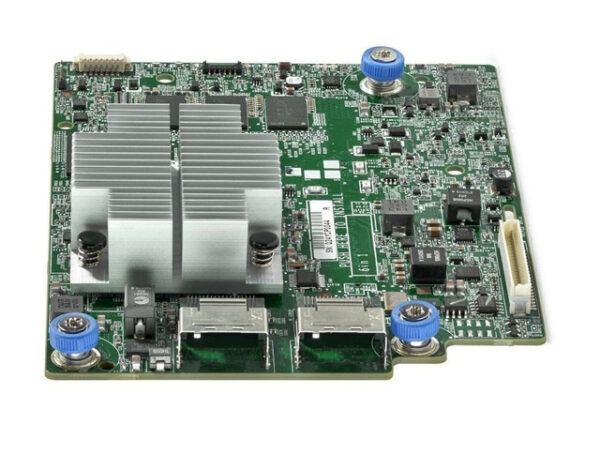

HP H240ar 12Gb/s Dual Port Internal
FIO Smart Host Bus Adapter
Part Number(s)
Option Part# 749976-B21
Spare Part# 749997-001
Overview:
The HP H240ar Smart Host Bus Adapter comes in a Flexible Smart SAS HBA form factor that provides a reliable – high performing SAS connectivity to the data in the server internal drives. Supported on select Gen9 servers – it features eight internal physical links and it delivers 12 Gb/s SAS performance. The H240ar Smart Host Bus Adapter provides flexibility to run as an HBA mode or simple RAID mode. When operating in simple RAID mode – it provides RAID 0 – RAID 1 – and RAID 5 with optional HP Secure Encryption capabilities. Unlike the HP Smart Array Controllers – the H240ar does not offer any acceleration or support cache modules.
Specifications:
Category
Controller
Sub-Category
HBA
Generation
H240ar
Part Number
749997-001
Products ID
725496
Manufacturer
HP
Device Type
FIO Smart HBA-Storage Controller
Host Bus
PCIe 3.0 x8
Controller Interface Type
SATA 6Gb/s SAS 12Gb/s
Data Transfer Rate
1.2GB/s
RAID Level
0, 1, 5
Supported Devices
Hard Drive, Solid State Drive
Channel Quantity
8
Form Factor
Plug-in Module
Connector Type
36 Pin 4i Mini MultiLane SAS (SFF-8087)
